ServiceNow Integration

The ServiceNow integration (Admin > Settings > ServiceNow) enables bi-directional synchronization between Canopy and your ServiceNow CMDB. This guide covers everything from initial setup to advanced recipes and operational best practices.

Why Integrate ServiceNow with Canopy?

ServiceNow CMDB and Enterprise Architecture tools serve different but complementary purposes:

	ServiceNow CMDB	Canopy
Focus	IT operations — what's running, who owns it, what incidents occurred	Strategic planning — what should the landscape look like in 3 years?
Maintained by	IT Operations, Asset Management	EA Team, Business Architects
Strength	Automated discovery, ITSM workflows, operational accuracy	Business context, capability mapping, lifecycle planning, assessments
Typical data	Hostnames, IPs, install status, assignment groups, contracts	Business criticality, functional fit, technical debt, strategic roadmap

Canopy is the system of record for your architecture landscape — names, descriptions, lifecycle plans, assessments, and business context all live here. ServiceNow supplements Canopy with operational and technical metadata (hostnames, IPs, SLA data, install status) that comes from automated discovery and ITSM workflows. The integration keeps these two systems connected while respecting that Canopy leads.

What You Can Do

• Pull sync — Seed Canopy with CIs from ServiceNow, then take ownership. Ongoing pulls only update operational fields (IPs, status, SLAs) that SNOW discovers automatically
• Push sync — Export EA-curated data back to ServiceNow (names, descriptions, assessments, lifecycle plans) so ITSM teams see EA context
• Bidirectional sync — Canopy leads most fields; SNOW leads a small set of operational/technical fields. Both systems stay in sync
• Identity mapping — Persistent cross-reference tracking (sys_id <-> card UUID) ensures records stay linked across syncs

---

Integration Architecture

+------------------+         HTTPS / Table API          +------------------+
|   Canopy       | <--------------------------------> |  ServiceNow      |
|                  |                                     |                  |
|  Cards           |  Pull: SNOW CIs -> Turbo Cards      |  CMDB CIs        |
|  (Application,   |  Push: Turbo Cards -> SNOW CIs      |  (cmdb_ci_appl,  |
|   ITComponent,   |                                     |   cmdb_ci_server, |
|   Provider, ...) |  Identity Map tracks sys_id &lt;-> UUID |   core_company)  |
+------------------+                                     +------------------+

The integration uses ServiceNow's Table API over HTTPS. Credentials are encrypted at rest using Fernet (AES-128-CBC) derived from your SECRET_KEY. All sync operations are logged as events with source: "servicenow_sync" for a complete audit trail.

---

Planning Your Integration

Before configuring anything, answer these questions:

1. Which card types need data from ServiceNow?

Start small. The most common integration points are:

Priority	Canopy Type	ServiceNow Source	Why
High	Application	cmdb_ci_business_app	Applications are the core of EA — CMDB has authoritative names, owners, and status
High	ITComponent (Software)	cmdb_ci_spkg	Software products feed into EOL tracking and tech radar
Medium	ITComponent (Hardware)	cmdb_ci_server	Server landscape for infrastructure mapping
Medium	Provider	core_company	Vendor registry for cost and relationship management
Lower	Interface	cmdb_ci_endpoint	Integration endpoints (often maintained manually in EA)
Lower	DataObject	cmdb_ci_database	Database instances

2. Which system is the source of truth for each field?

This is the most important decision. The default should be Canopy leads — the EA tool is the system of record for your architecture landscape. ServiceNow should only lead for a narrow set of operational and technical fields that come from automated discovery or ITSM workflows. Everything else — names, descriptions, assessments, lifecycle planning, costs — is owned and curated by the EA team in Canopy.

Recommended model — "Canopy leads, SNOW supplements":

Field Type	Source of Truth	Why
Names and descriptions	Turbo leads	EA team curates authoritative names and writes strategic descriptions; CMDB names can be messy or auto-generated
Business criticality	Turbo leads	EA team's strategic assessment — not operational data
Functional / technical fit	Turbo leads	TIME model scores are an EA concern
Lifecycle (all phases)	Turbo leads	Plan, phaseIn, active, phaseOut, endOfLife — all EA planning data
Cost data	Turbo leads	EA tracks total cost of ownership; CMDB may have contract line items but EA owns the consolidated view
Hosting type, category	Turbo leads	EA classifies applications by hosting model for strategic analysis
Technical metadata	SNOW leads	IPs, OS versions, hostnames, serial numbers — automated discovery data that EA doesn't maintain
SLA / operational status	SNOW leads	Install status, SLA targets, availability metrics — ITSM operational data
Assignment group / support	SNOW leads	Operational ownership tracked in ServiceNow workflows
Discovery dates	SNOW leads	First/last discovered, last scan — CMDB automation metadata

3. How often should you sync?

Scenario	Frequency	Notes
Initial import	Once	Additive mode, review carefully
Active landscape management	Daily	Automated via cron during off-hours
Compliance reporting	Weekly	Before generating reports
Ad-hoc	As needed	Before major EA reviews or presentations

---

Step 1: ServiceNow Prerequisites

Create a Service Account

In ServiceNow, create a dedicated service account (never use personal accounts):

Role	Purpose	Required?
itil	Read access to CMDB tables	Yes
cmdb_read	Read Configuration Items	Yes
rest_api_explorer	Helpful for testing queries	Recommended
import_admin	Write access to target tables	Only for push sync

Best practice: Create a custom role with read-only access to only the specific tables you plan to sync. The itil role is broad — a custom scoped role limits blast radius.

Network Requirements

• Canopy backend must reach your SNOW instance over HTTPS (port 443)
• Configure firewall rules and IP allowlists
• Instance URL format: https://company.service-now.com or https://company.servicenowservices.com

Choose Authentication Method

Method	Pros	Cons	Recommendation
Basic Auth	Simple setup	Credentials sent every request	Development/testing only
OAuth 2.0	Token-based, scoped, audit-friendly	More setup steps	Recommended for production

For OAuth 2.0:

1. In ServiceNow: System OAuth > Application Registry
2. Create a new OAuth API endpoint for external clients
3. Note the Client ID and Client Secret
4. Rotate secrets on a 90-day cycle

---

Step 2: Create a Connection

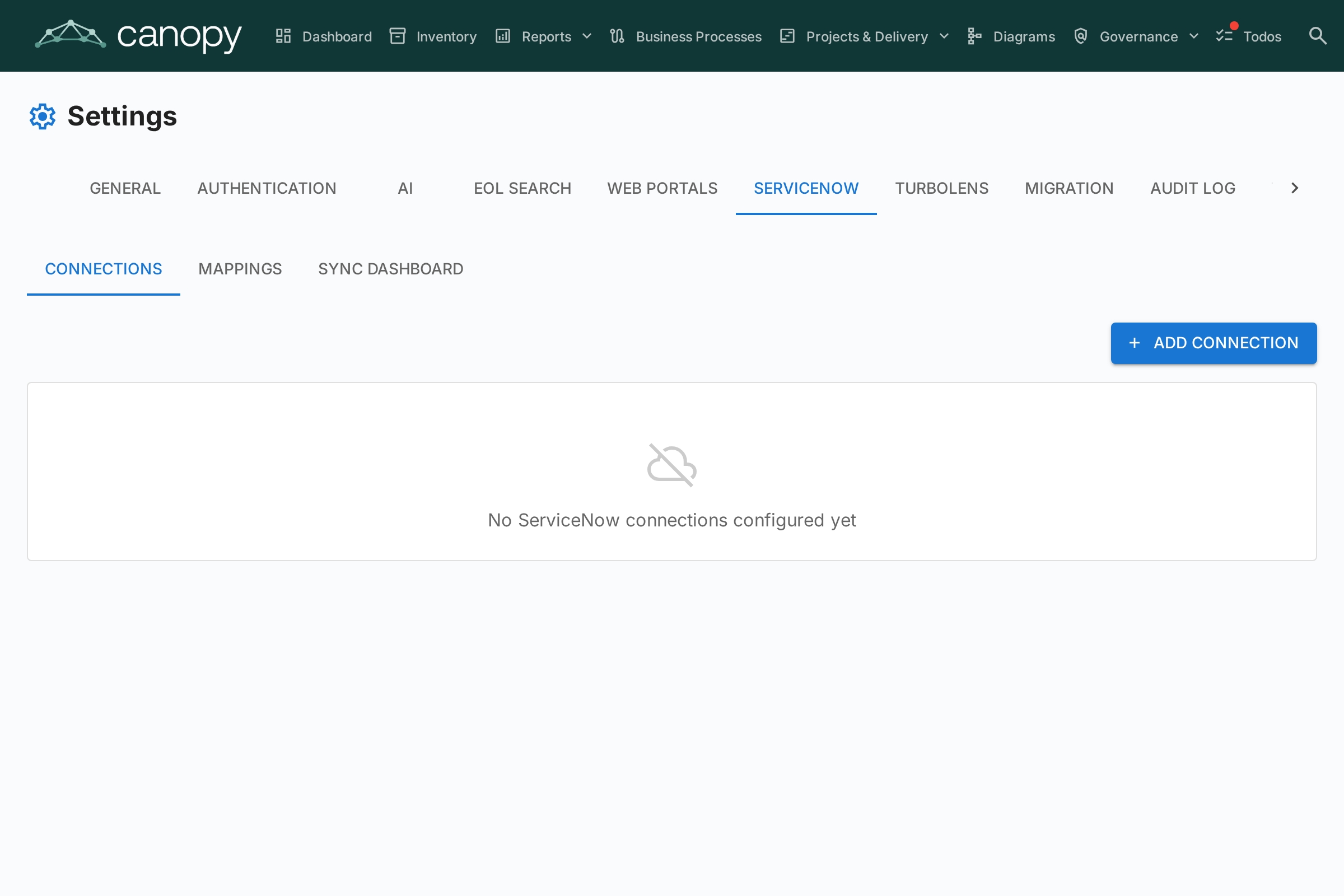

Navigate to Admin > ServiceNow > Connections tab.

Create and Test

1. Click Add Connection
2. Fill in:

Field	Example Value	Notes
Name	Production CMDB	Descriptive label for your team
Instance URL	https://company.service-now.com	Must use HTTPS
Auth Type	Basic Auth or OAuth 2.0	OAuth recommended for production
Credentials	(per auth type)	Encrypted at rest via Fernet

3. Click Create, then click the test icon (wifi symbol) to verify connectivity

• Green "Connected" chip — Ready to go
• Red "Failed" chip — Check credentials, network, and URL

Multiple Connections

You can create multiple connections for:

• Production vs development instances
• Regional SNOW instances (e.g., EMEA, APAC)
• Different teams with separate service accounts

Each mapping references a specific connection.

---

Step 3: Design Your Mappings

Switch to the Mappings tab. A mapping connects one Canopy card type to one ServiceNow table.

Create a Mapping

Click Add Mapping and configure:

Field	Description	Example
Connection	Which ServiceNow instance to use	Production CMDB
Card Type	The Canopy card type to sync	Application
SNOW Table	The ServiceNow table API name	cmdb_ci_business_app
Sync Direction	Which operations are available (see below)	ServiceNow -> Canopy
Sync Mode	How to handle deletions	Conservative
Max Deletion Ratio	Safety threshold for bulk deletes	50%
Filter Query	ServiceNow encoded query to limit scope	active=true^install_status=1
Skip Staging	Apply changes directly without review	Off (recommended for initial sync)

Common SNOW Table Mappings

Canopy Type	ServiceNow Table	Description
Application	cmdb_ci_business_app	Business applications (most common)
Application	cmdb_ci_appl	General application CIs
ITComponent (Software)	cmdb_ci_spkg	Software packages
ITComponent (Hardware)	cmdb_ci_server	Physical/virtual servers
ITComponent (SaaS)	cmdb_ci_cloud_service_account	Cloud service accounts
Provider	core_company	Vendors / companies
Interface	cmdb_ci_endpoint	Integration endpoints
DataObject	cmdb_ci_database	Database instances
System	cmdb_ci_computer	Computer CIs
Organization	cmn_department	Departments

Filter Query Examples

Always filter to avoid importing stale or retired records:

# Only active CIs (minimum recommended filter)
active=true

# Active CIs with install status "Installed"
active=true^install_status=1

# Applications in production use
active=true^used_for=Production

# CIs updated in the last 30 days
active=true^sys_updated_on>=javascript:gs.daysAgoStart(30)

# Specific assignment group
active=true^assignment_group.name=IT Operations

# Exclude retired CIs
active=true^install_statusNOT IN7,8

Best practice: Always include active=true at minimum. CMDB tables often contain thousands of retired or decommissioned records that should not be imported into your EA landscape.

---

Step 4: Configure Field Mappings

Each mapping contains field mappings that define how individual fields translate between the two systems. The Canopy Field input provides autocomplete suggestions based on the selected card type — including core fields, lifecycle dates, and all custom attributes from the type's schema.

Adding Fields

For each field mapping, you configure:

Setting	Description
Canopy Field	Field path in Canopy (autocomplete suggests options based on card type)
SNOW Field	ServiceNow column API name (e.g., name, short_description)
Direction	Per-field source of truth: SNOW leads or Turbo leads
Transform	How to convert values: Direct, Value Map, Date, Boolean
Identity (ID checkbox)	Used for matching records during initial sync

Canopy Field Paths

The autocomplete groups fields by section. Here's the full path reference:

Path	Target	Example Value
name	Card display name	"SAP S/4HANA"
description	Card description	"Core ERP system for financials"
lifecycle.plan	Lifecycle: Plan date	"2024-01-15"
lifecycle.phaseIn	Lifecycle: Phase In date	"2024-03-01"
lifecycle.active	Lifecycle: Active date	"2024-06-01"
lifecycle.phaseOut	Lifecycle: Phase Out date	"2028-12-31"
lifecycle.endOfLife	Lifecycle: End of Life date	"2029-06-30"
attributes.<key>	Any custom attribute from the card type's fields schema	Varies by field type

For example, if your Application type has a field with key businessCriticality, select attributes.businessCriticality from the dropdown.

Identity Fields — How Matching Works

Mark one or more fields as Identity (key icon). These are used during the first sync to match ServiceNow records to existing Canopy cards:

1. Identity map lookup — If a sys_id <-> card UUID link already exists, use it
2. Exact name match — Match on the identity field value (e.g., matching by application name)
3. Fuzzy match — If no exact match, use SequenceMatcher with 85% similarity threshold

Best practice: Always mark the name field as an identity field. If names differ between systems (e.g., SNOW includes version numbers like "SAP S/4HANA v2.1" but Canopy has "SAP S/4HANA"), clean them up before the first sync for better match quality.

After the first sync establishes identity map links, subsequent syncs use the persistent identity map and don't rely on name matching.

---

Step 5: Run Your First Sync

Switch to the Sync Dashboard tab.

Triggering a Sync

For each active mapping, you see Pull and/or Push buttons depending on the configured sync direction:

• Pull (cloud download icon) — Fetches data from SNOW into Canopy
• Push (cloud upload icon) — Sends Canopy data to ServiceNow

What Happens During a Pull Sync

1. FETCH     Retrieve all matching records from SNOW (batches of 500)
2. MATCH     Match each record to an existing card:
             a) Identity map (persistent sys_id <-> card UUID lookup)
             b) Exact name match on identity fields
             c) Fuzzy name match (85% similarity threshold)
3. TRANSFORM Apply field mappings to convert SNOW -> Canopy format
4. DIFF      Compare transformed data against existing card fields
5. STAGE     Assign an action to each record:
             - create: New, no matching card found
             - update: Match found, fields differ
             - skip:   Match found, no differences
             - delete: In identity map but absent from SNOW
6. APPLY     Execute staged actions (create/update/archive cards)

When Skip Staging is enabled, steps 5 and 6 merge — actions are applied directly without writing staged records.

Reviewing Sync Results

The Sync History table shows after each run:

Column	Description
Started	When the sync began
Direction	Pull or Push
Status	completed, failed, or running
Fetched	Total records retrieved from ServiceNow
Created	New cards created in Canopy
Updated	Existing cards updated
Deleted	Cards archived (soft-deleted)
Errors	Records that failed to process
Duration	Wall-clock time

Click the list icon on any run to inspect individual staged records, including the field-level diff for each update.

Recommended First Sync Procedure

1. Set mapping to ADDITIVE mode with staging ON
2. Run pull sync
3. Review staged records — check creates look correct
4. Go to Inventory, verify imported cards
5. Adjust field mappings or filter query if needed
6. Run again until satisfied
7. Switch to CONSERVATIVE mode for ongoing use
8. After several successful runs, enable Skip Staging

---

Understanding Sync Direction vs Field Direction

This is the most commonly misunderstood concept. There are two levels of direction that work together:

Table-Level: Sync Direction

Set on the mapping itself. Controls which sync operations are available on the Sync Dashboard:

Sync Direction	Pull button?	Push button?	Use when...
ServiceNow -> Canopy	Yes	No	CMDB is the master source, you just import
Canopy -> ServiceNow	No	Yes	EA tool enriches CMDB with assessments
Bidirectional	Yes	Yes	Both systems contribute different fields

Field-Level: Direction

Set per field mapping. Controls which system's value wins during a sync run:

Field Direction	During Pull (SNOW -> Turbo)	During Push (Turbo -> SNOW)
SNOW leads	Value is imported from ServiceNow	Value is skipped (not pushed)
Turbo leads	Value is skipped (not overwritten)	Value is exported to ServiceNow

How They Work Together — Example

Mapping: Application <-> cmdb_ci_business_app, Bidirectional

Field	Direction	Pull does...	Push does...
name	Turbo leads	Skips (EA curates names)	Pushes EA name -> SNOW
description	Turbo leads	Skips (EA writes descriptions)	Pushes description -> SNOW
lifecycle.active	Turbo leads	Skips (EA manages lifecycle)	Pushes go-live date -> SNOW
attributes.businessCriticality	Turbo leads	Skips (EA assessment)	Pushes assessment -> SNOW custom field
attributes.ipAddress	SNOW leads	Imports IP from discovery	Skips (operational data)
attributes.installStatus	SNOW leads	Imports operational status	Skips (ITSM data)

Key insight: The table-level direction determines what buttons appear. The field-level direction determines which fields actually transfer during each operation. A bidirectional mapping where Canopy leads most fields and SNOW only leads operational/technical fields is the most powerful configuration.

Best Practice: Field Direction by Data Type

The default should be Turbo leads for the vast majority of fields. Only set SNOW leads for operational and technical metadata that comes from automated discovery or ITSM workflows.

Data Category	Recommended Direction	Rationale
Names, display labels	Turbo leads	EA team curates authoritative, clean names — CMDB names are often auto-generated or inconsistent
Description	Turbo leads	EA descriptions capture strategic context, business value, and architectural significance
Business criticality (TIME model)	Turbo leads	Core EA assessment — not operational data
Functional/technical suitability	Turbo leads	EA-specific scoring and roadmap classification
Lifecycle (all phases)	Turbo leads	Plan, phaseIn, active, phaseOut, endOfLife are all EA planning decisions
Cost data	Turbo leads	EA tracks total cost of ownership and budget allocation
Hosting type, classification	Turbo leads	Strategic categorization maintained by architects
Vendor/provider info	Turbo leads	EA manages vendor strategy, contracts, and risk — SNOW may have a vendor name but EA owns the relationship
Technical metadata (OS, IP, hostname)	SNOW leads	Automated discovery data — EA doesn't maintain this
SLA targets, availability metrics	SNOW leads	Operational data from ITSM workflows
Install status, operational state	SNOW leads	CMDB tracks whether a CI is installed, retired, etc.
Assignment group, support team	SNOW leads	Operational ownership managed in ServiceNow
Discovery metadata (first/last seen)	SNOW leads	CMDB automation timestamps

---

Skip Staging — When to Use It

By default, pull syncs follow a stage-then-apply workflow:

Fetch -> Match -> Transform -> Diff -> STAGE -> Review -> APPLY

Records are written to a staging table, allowing you to review what will change before applying. This is visible in the Sync Dashboard under "View staged records."

Skip Staging Mode

When you enable Skip Staging on a mapping, records are applied directly:

Fetch -> Match -> Transform -> Diff -> APPLY DIRECTLY

No staged records are created — changes happen immediately.

	Staging (default)	Skip Staging
Review step	Yes — inspect diffs before applying	No — changes apply immediately
Staged records table	Populated with create/update/delete entries	Not populated
Audit trail	Staged records + event history	Event history only
Performance	Slightly slower (writes staging rows)	Slightly faster
Undo	Can abort before applying	Must manually revert

When to Use Each

Scenario	Recommendation
First-time import	Use staging — Review what gets created before applying
New or changed mapping	Use staging — Verify field transforms produce correct output
Stable, well-tested mapping	Skip staging — No need to review every run
Automated daily syncs (cron)	Skip staging — Unattended runs can't wait for review
Large CMDB (10,000+ CIs)	Skip staging — Avoids creating thousands of staging rows
Compliance-sensitive environment	Use staging — Maintain full audit trail in staging table

Best practice: Start with staging enabled for your first several syncs. Once you're confident the mapping produces correct results, enable skip staging for automated runs.

---

Sync Modes and Deletion Safety

Sync Modes

Mode	Creates	Updates	Deletes	Best For
Additive	Yes	Yes	Never	Initial imports, low-risk environments
Conservative	Yes	Yes	Only cards created by sync	Default for ongoing syncs
Strict	Yes	Yes	All linked cards	Full mirror of CMDB

Additive never removes cards from Canopy, making it the safest option for first-time imports and environments where Canopy contains cards not present in ServiceNow (manually created cards, cards from other sources).

Conservative (default) tracks whether each card was originally created by the sync engine. Only those cards can be auto-archived if they disappear from ServiceNow. Cards created manually in Canopy or imported from other sources are never touched.

Strict archives any linked card whose corresponding ServiceNow CI no longer appears in the query results, regardless of who created it. Use this only when ServiceNow is the absolute source of truth and you want Canopy to mirror it exactly.

Max Deletion Ratio — Safety Net

As a safety net, the engine skips all deletions if the count exceeds the configured ratio:

deletions / total_linked > max_deletion_ratio  ->  SKIP ALL DELETIONS

Example with 10 linked records and 50% threshold:

Scenario	Deletions	Ratio	Result
3 CIs removed normally	3 / 10 = 30%	Under threshold	Deletions proceed
6 CIs removed at once	6 / 10 = 60%	Over threshold	All deletions skipped
SNOW returns empty (outage)	10 / 10 = 100%	Over threshold	All deletions skipped

This prevents catastrophic data loss from filter query changes, temporary ServiceNow outages, or misconfigured table names.

Best practice: Keep the deletion ratio at 50% or lower for tables with fewer than 100 records. For large tables (1,000+), you can safely set it to 25%.

Recommended Progression

Week 1:   ADDITIVE mode, staging ON, run manually, review every record
Week 2-4: CONSERVATIVE mode, staging ON, run daily, spot-check results
Month 2+: CONSERVATIVE mode, staging OFF (skip), automated daily cron

---

Recommended Recipes by Type

Recipe 1: Applications from CMDB (Most Common)

Goal: Import the application landscape from ServiceNow, then take ownership of names, descriptions, assessments, and lifecycle in Canopy. SNOW only leads operational fields.

Mapping:

Setting	Value
Card Type	Application
SNOW Table	cmdb_ci_business_app
Direction	Bidirectional
Mode	Conservative
Filter	active=true^install_status=1

Field mappings:

Canopy Field	SNOW Field	Direction	Transform	ID?
name	name	Turbo leads	Direct	Yes
description	short_description	Turbo leads	Direct
lifecycle.active	go_live_date	Turbo leads	Date
lifecycle.endOfLife	retirement_date	Turbo leads	Date
attributes.businessCriticality	busines_criticality	Turbo leads	Value Map
attributes.hostingType	hosting_type	Turbo leads	Direct
attributes.installStatus	install_status	SNOW leads	Direct
attributes.ipAddress	ip_address	SNOW leads	Direct

Value map config for businessCriticality:

{
  "mapping": {
    "1 - most critical": "missionCritical",
    "2 - somewhat critical": "businessCritical",
    "3 - less critical": "businessOperational",
    "4 - not critical": "administrativeService"
  }
}

First sync tip: On the very first pull, SNOW values populate all fields (since cards don't exist yet). After that, Turbo leads fields are owned by the EA team — subsequent pulls only update the operational SNOW-leads fields (install status, IP), while the EA team manages everything else directly in Canopy.

After import: Refine application names, write strategic descriptions, map to Business Capabilities, add functional/technical suitability assessments, and set lifecycle phases — all of this is now owned by Canopy and will be pushed back to ServiceNow on push syncs.

---

Recipe 2: IT Components (Servers)

Goal: Import server infrastructure for infrastructure mapping and dependency analysis. Servers are more operational than applications, so more fields come from SNOW — but Canopy still leads names and descriptions.

Mapping:

Setting	Value
Card Type	ITComponent
SNOW Table	cmdb_ci_server
Direction	Bidirectional
Mode	Conservative
Filter	active=true^hardware_statusNOT IN6,7

Field mappings:

Canopy Field	SNOW Field	Direction	Transform	ID?
name	name	Turbo leads	Direct	Yes
description	short_description	Turbo leads	Direct
attributes.manufacturer	manufacturer.name	Turbo leads	Direct
attributes.operatingSystem	os	SNOW leads	Direct
attributes.ipAddress	ip_address	SNOW leads	Direct
attributes.serialNumber	serial_number	SNOW leads	Direct
attributes.hostname	host_name	SNOW leads	Direct

Note: For servers, operational/discovery fields like OS, IP, serial number, and hostname naturally come from SNOW's automated discovery. But the EA team still owns the display name (which may differ from the hostname) and description for strategic context.

After import: Link IT Components to Applications using relations, which feeds the dependency graph and infrastructure reports.

---

Recipe 3: Software Products with EOL Tracking

Goal: Import software products and combine with Canopy's endoflife.date integration. Canopy leads on names, descriptions, and vendor — version is a factual field that SNOW can lead on.

Mapping:

Setting	Value
Card Type	ITComponent
SNOW Table	cmdb_ci_spkg
Direction	Bidirectional
Mode	Conservative
Filter	active=true

Field mappings:

Canopy Field	SNOW Field	Direction	Transform	ID?
name	name	Turbo leads	Direct	Yes
description	short_description	Turbo leads	Direct
attributes.version	version	SNOW leads	Direct
attributes.vendor	manufacturer.name	Turbo leads	Direct

After import: Go to Admin > EOL and use Mass Search to automatically match imported IT Components against endoflife.date products. This gives you automated EOL risk tracking that combines CMDB inventory with public lifecycle data.

---

Recipe 4: Vendors / Providers (Bidirectional)

Goal: Keep the vendor registry in sync. Canopy owns vendor names, descriptions, and strategic context. SNOW supplements with operational contact data.

Mapping:

Setting	Value
Card Type	Provider
SNOW Table	core_company
Direction	Bidirectional
Mode	Additive
Filter	vendor=true

Field mappings:

Canopy Field	SNOW Field	Direction	Transform	ID?
name	name	Turbo leads	Direct	Yes
description	notes	Turbo leads	Direct
attributes.website	website	Turbo leads	Direct
attributes.contactEmail	email	SNOW leads	Direct

Why Turbo leads for most fields: The EA team curates vendor strategy, manages relationships, and tracks risk — this includes the vendor's display name, description, and web presence. SNOW leads only on operational contact data that may be updated by procurement or asset management teams.

---

Recipe 5: Push EA Assessments Back to ServiceNow

Goal: Export EA-specific assessments to ServiceNow custom fields so ITSM teams can see EA context.

Mapping:

Setting	Value
Card Type	Application
SNOW Table	cmdb_ci_business_app
Direction	Canopy -> ServiceNow
Mode	Additive

Field mappings:

Canopy Field	SNOW Field	Direction	Transform	ID?
name	name	SNOW leads	Direct	Yes
attributes.businessCriticality	u_ea_business_criticality	Turbo leads	Value Map
attributes.functionalSuitability	u_ea_functional_fit	Turbo leads	Value Map
attributes.technicalSuitability	u_ea_technical_fit	Turbo leads	Value Map

Important: Push sync to custom fields (prefixed with u_) requires those columns to already exist in ServiceNow. Work with your ServiceNow admin to create them before configuring the push mapping. The service account needs import_admin role for write access.

Why this matters: ITSM teams see EA assessments directly in ServiceNow incident/change workflows. When a "Mission Critical" application has an incident, priority escalation rules can use the EA-provided criticality score.

---

Transform Types Reference

Direct (default)

Pass the value through unchanged. Use for text fields that have the same format in both systems.

Value Map

Translates enumerated values between systems. Configure with a JSON mapping:

{
  "mapping": {
    "1": "missionCritical",
    "2": "businessCritical",
    "3": "businessOperational",
    "4": "administrativeService"
  }
}

The mapping reverses automatically when pushing from Canopy to ServiceNow. For example, during push, "missionCritical" becomes "1".

Date Format

Truncates ServiceNow datetime values (2024-06-15 14:30:00) to date-only (2024-06-15). Use for lifecycle phase dates where time is irrelevant.

Boolean

Converts between ServiceNow string booleans ("true", "1", "yes") and native booleans. Useful for fields like "is_virtual", "active", etc.

---

Security Best Practices

Credential Management

Practice	Details
Encryption at rest	All credentials encrypted via Fernet (AES-128-CBC) derived from SECRET_KEY. If you rotate SECRET_KEY, re-enter all ServiceNow credentials.
Least privilege	Create a dedicated SNOW service account with read-only access to specific tables. Only grant write access if using push sync.
OAuth 2.0 preferred	Basic Auth sends credentials on every API call. OAuth uses short-lived tokens with scope restrictions.
Credential rotation	Rotate passwords or client secrets every 90 days.

Network Security

Practice	Details
HTTPS enforced	HTTP URLs are rejected at validation time. All connections must use HTTPS.
Table name validation	Table names validated against ^[a-zA-Z0-9_]+$ to prevent injection.
sys_id validation	sys_id values validated as 32-character hex strings.
IP allowlisting	Configure ServiceNow IP Access Control to only allow your Canopy server's IP.

Access Control

Practice	Details
RBAC gated	Read-only ServiceNow endpoints require the servicenow.view permission; all changes require servicenow.manage.
Audit trail	All sync-created changes publish events with source: "servicenow_sync", visible in card history.
No credential exposure	Passwords and secrets are never returned in API responses.

Production Checklist

• Dedicated ServiceNow service account (not a personal account)
• OAuth 2.0 with client credentials grant
• Credential rotation schedule (every 90 days)
• Service account restricted to only mapped tables
• ServiceNow IP allowlist configured for Canopy server IP
• Max deletion ratio set to 50% or lower
• Sync runs monitored for unusual error or deletion counts
• Filter queries include active=true at minimum

---

Operational Runbook

Initial Setup Sequence

1. Create ServiceNow service account with minimum required roles
2. Verify network connectivity (can Canopy reach SNOW over HTTPS?)
3. Create connection in Canopy and test it
4. Verify metamodel types have all fields you want to sync
5. Create first mapping with ADDITIVE mode, staging ON
6. Use the Preview button (via API) to verify mapping produces correct output
7. Run first pull sync — review staged records in the Sync Dashboard
8. Apply staged records
9. Verify imported cards in the Inventory
10. Adjust field mappings if needed, re-run
11. Switch mapping to CONSERVATIVE mode for ongoing use
12. After several successful runs, enable Skip Staging for automation

Ongoing Operations

Task	Frequency	How
Run pull sync	Daily or weekly	Sync Dashboard > Pull button (or cron)
Review sync stats	After each run	Check error/deletion counts
Test connections	Monthly	Click test button on each connection
Rotate credentials	Quarterly	Update in both SNOW and Canopy
Review identity map	Quarterly	Check orphaned entries via sync stats
Audit card history	As needed	Filter events by servicenow_sync source

Setting Up Automated Syncs

Syncs can be triggered via API for automation:

# Daily pull sync at 2:00 AM
0 2 * * * curl -s -X POST \
  -H "Authorization: Bearer $TURBOEA_TOKEN" \
  "https://turboea.company.com/api/v1/servicenow/sync/pull/$MAPPING_ID" \
  >> /var/log/turboea-sync.log 2>&1

Best practice: Run syncs during off-peak hours. For large CMDB tables (10,000+ CIs), expect 2-5 minutes depending on network latency and record count.

Capacity Planning

CMDB Size	Expected Duration	Recommendation
< 500 CIs	< 30 seconds	Sync daily, staging optional
500-5,000 CIs	30s - 2 minutes	Sync daily, skip staging
5,000-20,000 CIs	2-5 minutes	Sync nightly, skip staging
20,000+ CIs	5-15 minutes	Sync weekly, use filter queries to split

---

Troubleshooting

Connection Issues

Symptom	Cause	Fix
Connection failed: [SSL]	Self-signed or expired cert	Ensure SNOW uses a valid public CA certificate
HTTP 401: Unauthorized	Wrong credentials	Re-enter username/password; check account is not locked
HTTP 403: Forbidden	Insufficient roles	Grant itil and cmdb_read to the service account
Connection failed: timed out	Firewall block	Check rules; allowlist Canopy's IP in SNOW
Test OK but sync fails	Table-level permissions	Grant read access to the specific CMDB table

Sync Issues

Symptom	Cause	Fix
0 records fetched	Wrong table or filter	Verify table name; simplify filter query
All records are "create"	Identity mismatch	Mark name as identity; verify names match between systems
High error count	Transform failures	Check staged records for error messages
Deletions skipped	Ratio exceeded	Increase threshold or investigate why CIs disappeared
Changes not visible	Browser cache	Hard-refresh; check card history for events
Duplicate cards	Multiple mappings for same type	Use one mapping per card type per connection
Push changes rejected	Missing SNOW permissions	Grant import_admin role to service account

Diagnostic Tools

# Preview how records will map (5 samples, no side effects)
POST /api/v1/servicenow/mappings/{mapping_id}/preview

# Browse tables on the SNOW instance
GET /api/v1/servicenow/connections/{conn_id}/tables?search=cmdb

# Inspect columns for a table
GET /api/v1/servicenow/connections/{conn_id}/tables/cmdb_ci_business_app/fields

# Filter staged records by action or status
GET /api/v1/servicenow/sync/runs/{run_id}/staged?action=create
GET /api/v1/servicenow/sync/runs/{run_id}/staged?action=update
GET /api/v1/servicenow/sync/runs/{run_id}/staged?status=error

---

API Reference (Quick)

All endpoints require Authorization: Bearer <token>. Read-only endpoints need the servicenow.view permission; mutating endpoints need servicenow.manage. Base path: /api/v1.

Connections

Method	Path	Description
GET	/servicenow/connections	List connections
POST	/servicenow/connections	Create connection
GET	/servicenow/connections/{id}	Get connection
PATCH	/servicenow/connections/{id}	Update connection
DELETE	/servicenow/connections/{id}	Delete connection + all mappings
POST	/servicenow/connections/{id}/test	Test connectivity
GET	/servicenow/connections/{id}/tables	Browse SNOW tables
GET	/servicenow/connections/{id}/tables/{table}/fields	List table columns

Mappings

Method	Path	Description
GET	/servicenow/mappings	List mappings with field mappings
POST	/servicenow/mappings	Create mapping with field mappings
GET	/servicenow/mappings/{id}	Get mapping with field mappings
PATCH	/servicenow/mappings/{id}	Update mapping (replaces fields if provided)
DELETE	/servicenow/mappings/{id}	Delete mapping
POST	/servicenow/mappings/{id}/preview	Dry-run preview (5 sample records)

Sync Operations

Method	Path	Description
POST	/servicenow/sync/pull/{mapping_id}	Pull sync (?auto_apply=true default)
POST	/servicenow/sync/push/{mapping_id}	Push sync
GET	/servicenow/sync/runs	List sync history (?limit=20)
GET	/servicenow/sync/runs/{id}	Get run details + stats
GET	/servicenow/sync/runs/{id}/staged	List staged records for a run
POST	/servicenow/sync/runs/{id}/apply	Apply pending staged records
